Sunset Ford of Sumner

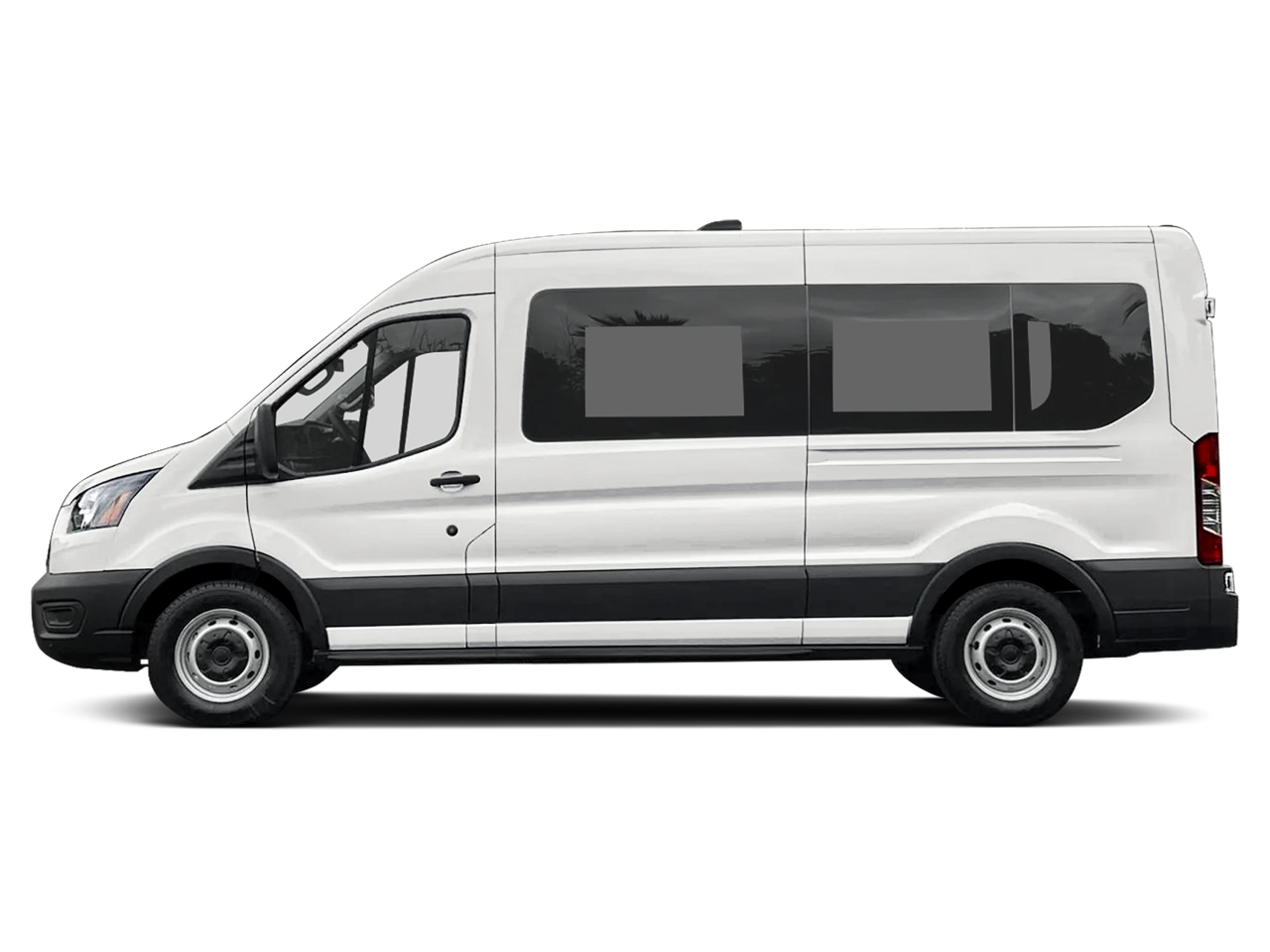

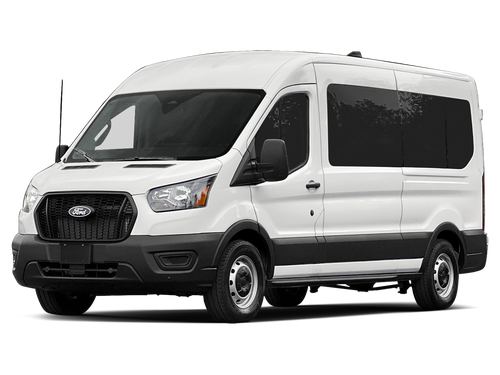

2026 Ford Transit-350 XL



In Stock
  • $76,230 MSRP

  • MSRP: $76,230
  • Call for Availability and Incentives


Visit our Store

Vehicle Information

VIN: 1FBAX9CG9TKA70493
Stock #: T26045
Model Code: X9C
  • Body Style Passenger Van
  • Exterior Color Gray
  • Interior Color Gray
  • Engine 6 Cyl - 3.50 L
  • Transmission 10-Speed Automatic with Overdrive
  • Fuel Type Gasoline

Highlighted Features

Feature availability subject to final vehicle configuration. Please reference window sticker for more info.

Dealer Comments

More and more shoppers are turning to Sunset for a better vehicle ownership experience and greater long-term value. At Sunset, we believe value goes far beyond just the price tag. The average cost of an extended powertrain warranty can cost up to $1,600 per year. With the average vehicle ownership in the U.S. Now lasting around 8.5 years, that can add up to nearly $13,600. Sunset’s exclusive Warranty Protection for Life offers this peace of mind at no additional cost, saving you thousands during the ownership of your vehicle. In addition, the average cost of an oil change these days can run you as much as $150 per service ... more if you are driving a diesel truck ...and those prices are not likely to be going down, right? Sunset's Oil Changes For Life includes up to five (5) oil changes per year. Based on your driving habits, this means you could be spending over $750 - $1000 annually... just on oil changes! That’s crazy! In short, paying the lowest price doesn’t always mean getting the best deal. At Sunset, you get more: more protection, more savings, and more value throughout your vehicle ownership. You just get more at Sunset, and people DO like that.

All Features

  • 4.10 Limited-Slip Axle Ratio No longer available for factory ordering, standard equipment as of December 1, 2025.
  • GVWR: 9,550 lb
  • 50-State Emissions System
  • Automatic Full-Time All-Wheel
  • 70-Amp/Hr Maintenance-Free Battery w/Run Down Protection
  • HD 250 Amp Alternator
  • 2890# Maximum Payload
  • Gas-Pressurized Front Shock Absorbers and HD Gas-Pressurized Rear Shock Absorbers
  • Front Anti-Roll Bar
  • Electric Power-Assist Steering
  • 25.1 Gal. Fuel Tank
  • Single Stainless Steel Exhaust
  • Permanent Locking Hubs
  • Strut Front Suspension w/Coil Springs
  • Solid Axle Rear Suspension w/Leaf Springs
  • 4-Wheel Disc Brakes w/4-Wheel ABS, Front Vented Discs, Brake Assist, Hill Hold Control and Electric Parking Brake
  • Wheels: 16" Silver Steel w/Exposed Lug Nuts
  • Tires: 235/65R16C 121/119 R AS BSW
  • Steel Spare Wheel
  • Full-Size Spare Tire Stored Underbody w/Crankdown
  • Black Front Bumper
  • Black Rear Bumper w/1 Tow Hook
  • Black Bodyside Cladding and Black Wheel Well Trim
  • Black Side Windows Trim and Black Front Windshield Trim
  • Black Door Handles
  • Front Black Wheel Well Liners
  • Black Power Side Mirrors w/Convex Spotter and Manual Folding
  • Fixed Rear Window w/Defroster
  • Rain Detecting Variable Intermittent Wipers
  • Light Tinted Glass
  • Fully Galvanized Steel Panels
  • Black Grille
  • Sliding Rear Passenger Side Door
  • Split Swing-Out Rear Cargo Access
  • Tailgate/Rear Door Lock Included w/Power Door Locks
  • Ford Co-Pilot360 - Autolamp Auto On/Off Reflector Halogen Auto High-Beam Headlamps w/Delay-Off
  • Cab Clearance Lights
  • Headlights-Automatic Highbeams
  • Radio: AM/FM Stereo
  • Radio w/Seek-Scan, Clock, Steering Wheel Controls and External Memory Control
  • 8 Speakers
  • Streaming Audio
  • Fixed Antenna
  • Ford Connectivity Package (1-Year Included) -inc: unlimited Wi-Fi hotspot, connected navigation, audio and video streaming, voice assistant and entertainment, Note: Ford Connectivity Package included for one-year from warranty start date, Requires activation via Ford app w/credit card authorization; customer may cancel at any time, Evolving technology/cellular networks/vehicle capability may limit functionality and prevent operation of connected features, Ford may temporarily slow data speeds if such data usage reaches or exceeds 50GB within a billing cycle or due to network limitations, If a customer uses more than 50% of their data usage in a roaming country during a 60-day period, Ford may remove or limit the customer's data plan
  • 1 LCD Monitor In The Front
  • Real-Time Traffic Display
  • Dark Palazzo Gray Cloth Bucket Seats -inc: 2-way manual driver seat w/lumbar, 2-way manual passenger seat, 2-way adjustable headrest and driver and passenger armrest
  • Front Seats w/Cloth Back Material and Manual Driver Lumbar
  • 4-Way Driver Seat -inc: Manual Recline, Fore/Aft Movement and Manual Lumbar Support
  • 4-Way Passenger Seat -inc: Manual Recline and Fore/Aft Movement
  • Removable Bench Front Facing Rear Seat
  • Manual Tilt/Telescoping Steering Column
  • Fixed Rear Windows and Fixed 3rd Row Windows
  • Removable Split-Bench 3rd Row Seat Front, 3 Manual and Adjustable Head Restraints
  • Removable Split-Bench Front Facing 4th Row Seat Number, Control and Type Head Restraint
  • Front Cupholder
  • Rear Cupholder
  • Proximity Key For Push Button Start Only
  • Remote Keyless Entry w/Integrated Key Transmitter, Illuminated Entry and Panic Button
  • Cruise Control w/Steering Wheel Controls
  • Voice Activated Manual Air Conditioning
  • Rear HVAC
  • HVAC -inc: Underseat Ducts
  • Locking Glove Box
  • Driver Foot Rest
  • Interior Trim -inc: Metal-Look Instrument Panel Insert
  • Full Cloth Headliner
  • Urethane Gear Shifter Material
  • Cloth Front Bucket Seats
  • Day-Night Rearview Mirror
  • Driver And Passenger Visor Vanity Mirrors
  • Partial Floor Console w/Storage and 2 12V DC Power Outlets
  • Front Map Lights
  • Fade-To-Off Interior Lighting
  • Full Vinyl/Rubber Floor Covering
  • Vinyl/Rubber Floor Trim
  • Cargo Space Lights
  • Integrated Navigation System w/Voice Activation
  • SYNC 4 -inc: 12" center display, Bluetooth®, dual USB ports, electronic climate control and connectivity package which includes information on demand panel, wireless Apple CarPlay and Android Auto compatibility, cloud connected, 911 Assist and digital owner's manual
  • Instrument Panel Bin, Driver / Passenger And Rear Door Bins
  • Power 1st Row Windows w/Driver 1-Touch Down
  • Power Door Locks w/Autolock Feature
  • Driver Information Center
  • Analog Appearance
  • Manual Adjustable Front Head Restraints and Manual Adjustable Rear Head Restraints
  • Driver And Front Passenger Armrests
  • Securilock Anti-Theft Ignition (pats) Immobilizer
  • 2 12V DC Power Outlets
  • Ford Co-Pilot360 w/Side Wind Stabilization Electronic Stability Control (ESC) And Roll Stability Control (RSC)
  • ABS And Driveline Traction Control
  • Side Impact Beams
  • Dual Stage Driver And Passenger Seat-Mounted Side Airbags
  • Front And Rear Parking Sensors
  • PCA with AEB and Intersection Assist
  • Lane-Keeping System Lane Keeping Assist
  • Lane-Keeping System Lane Departure Warning
  • Collision Mitigation-Front
  • Driver Monitoring-Alert
  • Low Tire Pressure Warning
  • Dual Stage Driver And Passenger Front Airbags
  • Safety Canopy System Curtain 1st, 2nd And 3rd Row Airbags
  • Airbag Occupancy Sensor
  • Outboard Front Lap And Shoulder Safety Belts -inc: Rear Center 3 Point, Height Adjusters and Pretensioners
  • Back-Up Camera
  • Front Black Wheel Well Liners
  • Large Center Console
  • Black High-Intensity Discharge (HID) Headlamps
  • Cloth Front Bucket Seats
  • Ford Connectivity Package (1-Year Included)
  • Wheels: 16" Silver Steel with Exposed Lug Nuts
  • SYNC 4
  • 4-Wheel Disc Brakes
  • Navigation system: Connected Navigation
  • Apple CarPlay/Android Auto
  • Emergency communication system: 911 Assist
  • Auto High-beam Headlights
  • Driver's Seat Mounted Armrest
  • 4th-Row Bench Seat
  • 8 Speakers
  • Front beverage holders
  • Variably intermittent wipers
  • Traction control
  • Tilt steering wheel
  • Telescoping steering wheel
  • Steering wheel mounted audio controls
  • Speed control
  • Remote keyless entry
  • Rear window defroster
  • Rear air conditioning
  • Rain sensing wipers
  • Power windows
  • Power steering
  • Power door mirrors
  • Passenger vanity mirror
  • Passenger seat mounted armrest
  • Passenger door bin
  • Panic alarm
  • Overhead airbag
  • Occupant sensing airbag
  • Low tire pressure warning
  • Illuminated entry
  • Front wheel independent suspension
  • Front reading lights
  • Front anti-roll bar
  • Dual front side impact airbags
  • Dual front impact airbags
  • Driver vanity mirror
  • Driver door bin
  • Delay-off headlights
  • Brake assist
  • ABS brakes
  • 3rd row seats: split-bench
  • Tachometer
  • Front Bucket Seats
  • Electronic Stability Control
  • Air Conditioning
  • Vehicle
    • Rear Door Type: Split Swing-Out
  • Mileage
    • Fuel Economy Est-Combined (MPG): - TBD -
    • EPA Fuel Economy Est - City (MPG): - TBD -
    • EPA Fuel Economy Est - Hwy (MPG): - TBD -
  • Electrical
    • Maximum Alternator Capacity (amps): 250
  • Weight Information
    • Base Curb Weight (lbs): 6439
    • Base Curb Weight (lbs): 6359
    • Gross Axle Wt Rating - Front (lbs): 4630
    • Gross Axle Wt Rating - Rear (lbs): 5780
    • Curb Weight - Front (lbs): 3449
    • Curb Weight - Rear (lbs): 2911
    • Gross Vehicle Weight Rating Cap (lbs): 9550
    • Gross Combined Wt Rating (lbs): 11200
  • Trailering
    • Dead Weight Hitch - Max Trailer Wt. (lbs): 4100
    • Dead Weight Hitch - Max Trailer Wt. (lbs): 4200
    • Dead Weight Hitch - Max Tongue Wt. (lbs): 410
    • Dead Weight Hitch - Max Tongue Wt. (lbs): 420
    • Wt Distributing Hitch - Max Trailer Wt. (lbs): 4100
    • Wt Distributing Hitch - Max Trailer Wt. (lbs): 4200
    • Wt Distributing Hitch - Max Tongue Wt. (lbs): 410
    • Wt Distributing Hitch - Max Tongue Wt. (lbs): 420
    • Maximum Trailering Capacity (lbs): 4100
    • Maximum Trailering Capacity (lbs): 4200
  • Suspension
    • Suspension Type - Front: Strut
    • Suspension Type - Rear: Leaf
    • Axle Type - Front: Independent
    • Axle Type - Rear: Rigid Axle
    • Axle Ratio (:1) - Front: 4.10
    • Axle Ratio (:1) - Rear: 4.10
  • Brakes
    • Brake Type: 4-Wheel Disc
    • Brake ABS System: 4-Wheel
    • Brake ABS System (Second Line): 4-Wheel
    • Disc - Front (Yes or ): Yes
    • Disc - Rear (Yes or ): Yes
    • Front Brake Rotor Diam x Thickness (in): 12.1
    • Rear Brake Rotor Diam x Thickness (in): 12.1
  • Tires
    • Front Tire Size: LT235/65RR16
    • Rear Tire Size: LT235/65RR16
    • Spare Tire Size: Full-Size
    • Revolutions/Mile @ 45 mph - Front: 720
    • Revolutions/Mile @ 45 mph - Rear: 720
  • Wheels
    • Front Wheel Size (in): 16 X 6.5
    • Rear Wheel Size (in): 16 X 6.5
    • Spare Wheel Size (in): Full-Size
    • Front Wheel Material: Steel
    • Rear Wheel Material: Steel
    • Spare Wheel Material: Steel
  • Steering
    • Steering Type: Rack-Pinion
    • Turning Diameter - Curb to Curb (ft): 47.8
  • Fuel Tank
    • Fuel Tank Capacity, Approx (gal): 25.1
  • Doors
    • Side Door Type: Sliding
  • Exterior Dimensions
    • Wheelbase (in): 148
    • Length, Overall (in): 235.5
    • Width, Max w/o mirrors (in): 81.3
    • Height, Overall (in): 99.2
    • Overhang, Front (in): 40.3
    • Ground to Top of Load Floor (in): 28.8
    • Ground Clearance, Front (in): 6
    • Ground Clearance, Rear (in): 6
  • Cargo Area Dimensions
    • Cargo Area Length @ Floor to Seat 1 (in): 141.7
    • Cargo Area Length @ Floor to Seat 2 (in): 107.1
    • Cargo Area Length @ Floor to Seat 3 (in): 76.2
    • Cargo Area Width @ Beltline (in): 69.8
    • Cargo Box Width @ Wheelhousings (in): 53.7
    • Cargo Box (Area) Height (in): 67.6
    • Cargo Volume to Seat 1 (ft³): 336.1
    • Cargo Volume to Seat 3 (ft³): 93.9
    • Cargo Volume to Seat 4 (ft³): 93.9
  • Interior Dimensions
    • Passenger Capacity: 12
    • Front Head Room (in): 52
    • Front Leg Room (in): 41.3
    • Front Shoulder Room (in): 67.9
    • Front Hip Room (in): 60.7
    • Second Head Room (in): 55.8
    • Second Leg Room (in): 33.7
    • Second Shoulder Room (in): 71.4
    • Second Hip Room (in): 69.6
    • Third Head Room (in): 55.8
    • Third Leg Room (in): 35.6
    • Third Shoulder Room (in): 67
    • Third Hip Room (in): 67.3
  • Summary
    • Vehicle Name: Ford Transit Passenger Wagon
    • Body Style: Medium Roof Van
    • Body Code: V
  • Emissions
    • Tons/yr of CO2 Emissions @ 15K mi/year: - TBD -

Warranty

  • Basic Warranty: 36 months / 36,000 miles
  • Drivetrain Warranty: 60 months / 60,000 miles
  • Corrosion Warranty: 60 months / Unlimited miles
  • Roadside Assistance Warranty: 60 months / 60,000 miles
